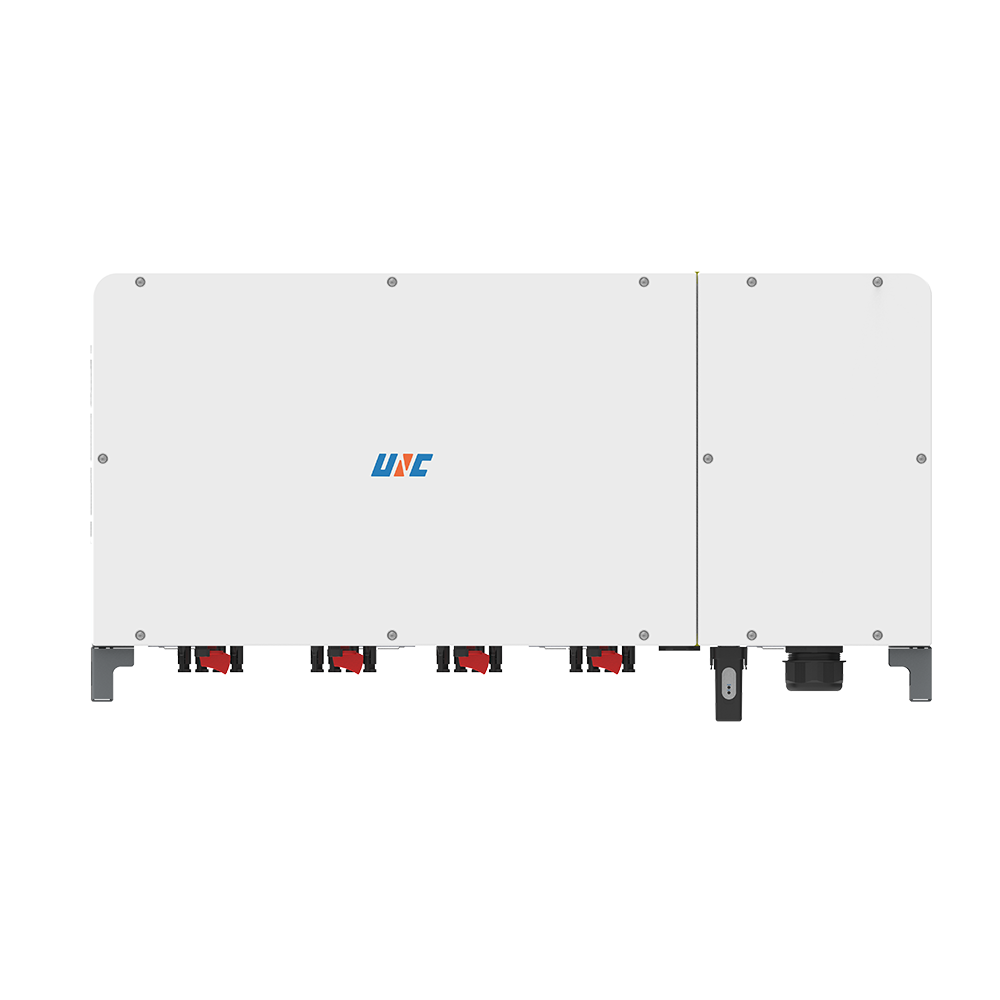

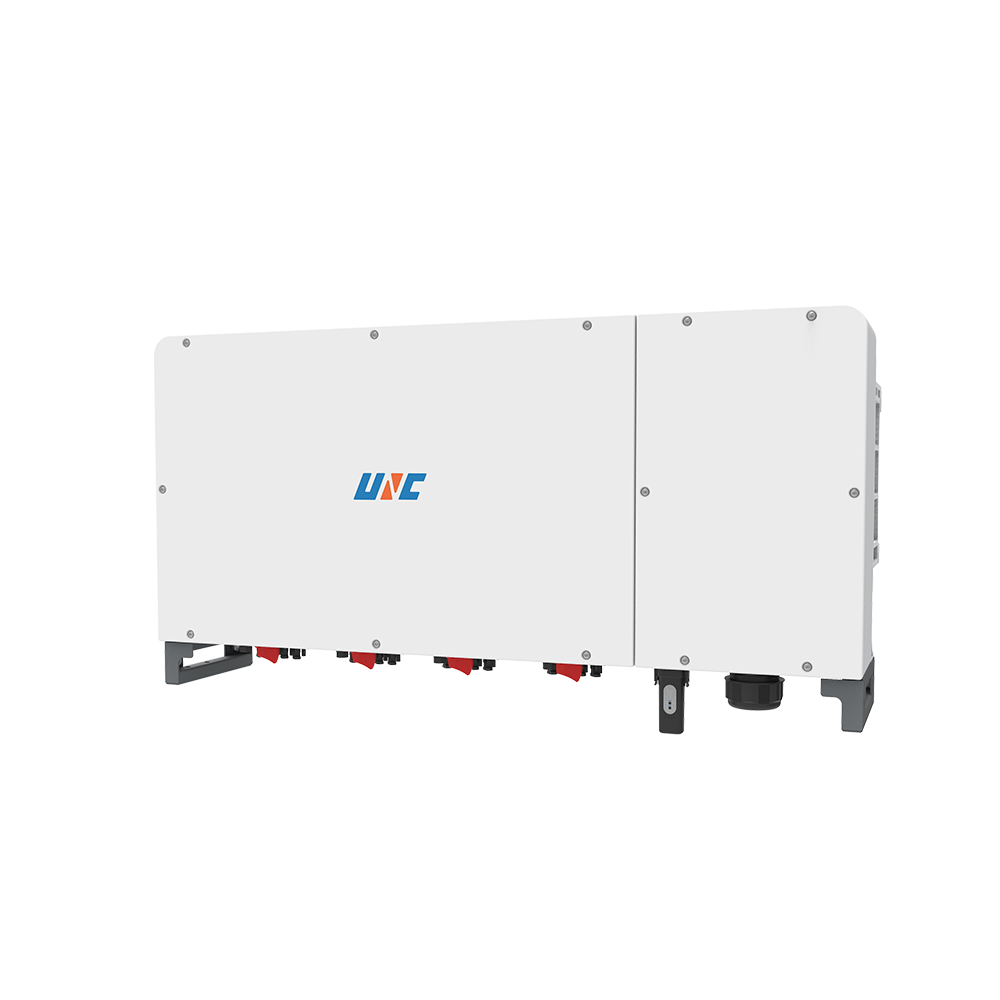

FrontPage>Product Center>Smart Microgrid>Three-Phase Photovoltaic Inverter

Product Advantages

Max. Efficiency 98.7%

Max. Efficiency 98.7%
Ultra-Low Start-Up Voltage
Ultra-Wide Voltage Range

1.5x DC Oversizing

Supports 1.5x DC Oversizing
Compatible with High-Current Modules up to 20A

IP66

IP66 High Protection Rating
Smart Air Cooling, Low Noise

Smart DC Arc-Fault Detection

Supports Smart DC Arc-Fault Detection (Optional)

Weak Grid Adaptability

Features Weak Grid Adaptability

Multiple Operating Modes

Primary Frequency Regulation, P-F, Q-U and Other Operating Modes

Technical Specifications

Product ModelTS1-80K3P-08TS1-100K3P-08TSI-110K3P-08
DC Input


Max. Input Power120kW
150kW
165kW
Max. Input Voltage180V
Start-up Voltage580V
MPPT Voltage Range200-1000V
MPPT Input Quantity8
Strings per MPPT2
2
2
Max. Input Current40A*4+32A*4
40A*4+32A*4
40A*4+32A*4
Max. Short-Circuit Current50A*8
50A*8
50A*8
AC Output


Rated Output Power80kW100kW110kW
Max. Output Apparent Power88kVA110kVA121KVA
Max. Output Current3*128A3*160A3*176A
Rated Grid Voltage3/N/PE,400V
Grid Voltage Range300V-480V
Rated Grid Frequency50Hz
Grid Frequency Range45Hz-55Hz
Power Factor>0.99 (0.8 leading - 0.8 lagging)
Total Current Waveform Distortion<3%
DC Component<0.5%
Inverter Efficiency


Max. Efficiency98.7%
98.7%
98.7%
European Efficiency98.1%
98.1%
98.1%
Chinese Efficiency98.1%
98.1%
98.1%
Protection


DC Reverse Polarity ProtectionYes
AC Short-Circuit ProtectionYes
AC Output OvercurrentYes
Output Overvoltage ProtectionYes
Insulation Impedance ProtectionYes
Residual Current (RCD)Level II Surge Protection
Surge ProtectionYes
Anti-Islanding ProtectionYes
