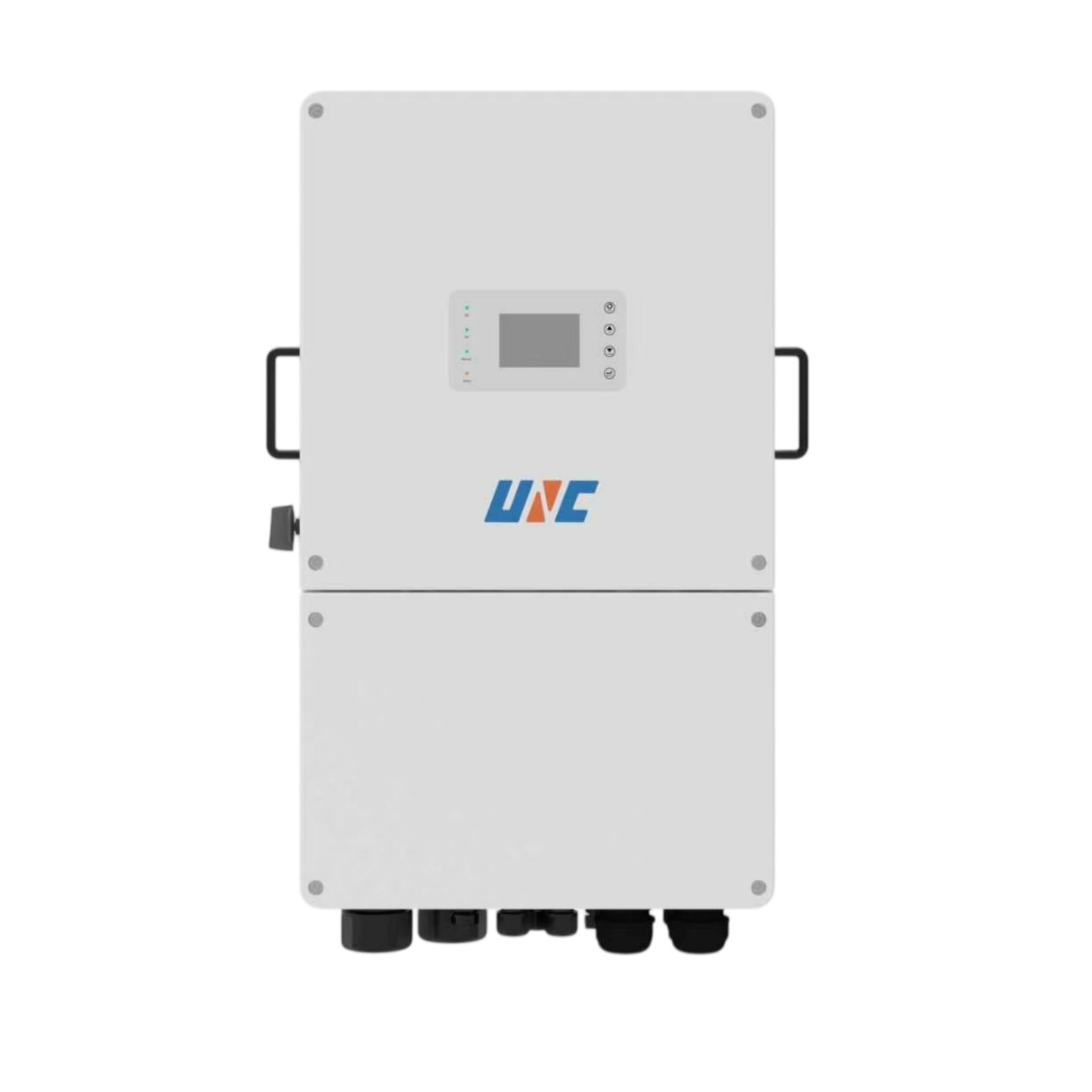

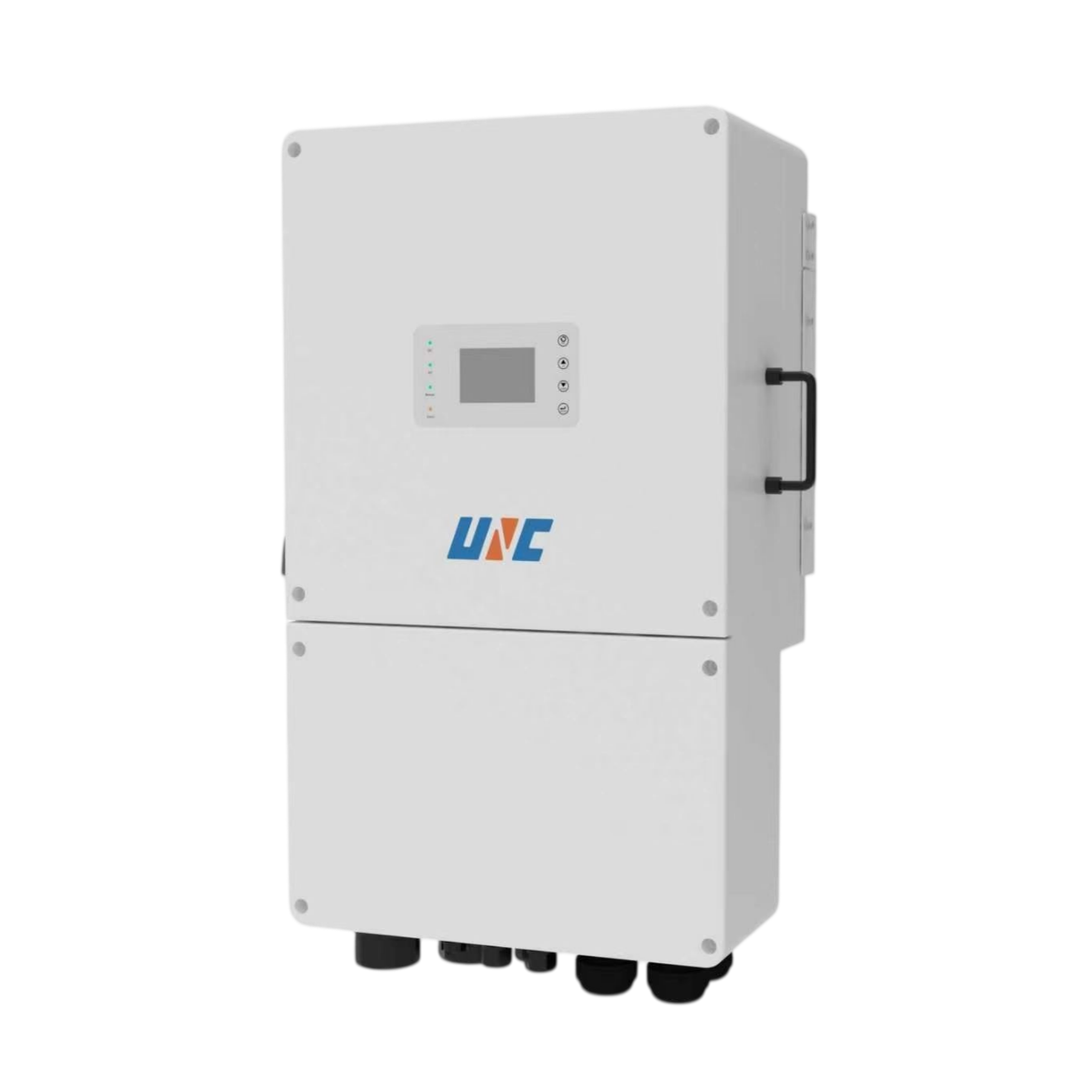

Three-phase LV Hybrid
Inverter(on-grid)
15-20kW

Household Energy Storage Hybrid Inverter
Parameter Manual

Position：

FrontPage>Product Center>Household Energy Storage>Hybrid Inverter

Product Advantages

240A

Maximum charge/discharge current: 240A

10 units in parallel

Up to 10 units can operate in parallel

Three-phase imbalance

Supports unbalanced three-phase loads

IP66

IP66 high protection rating

Diesel generator connection

Supports diesel generator connection

AC coupling

Supports AC coupling retrofit of existing PV systems

Technical Specifications

ESS2 Series 15-20kW Three-Phase Energy Storage Inverter


Product Model

ESS2-15K3P-02-LVESS2-18K3P-02-LVESS2-20K3P-02-LV
DC Input (PV)


Max. PV Input Voltage800V
MPPT Voltage Range160-650V
Max. Input Current36A
Max. Short-Circuit Current54A/54A
Recommended Max. PV Power24kW28.8kW32kW
MPPT Quantity / Max. Input Strings2/2+2
Battery Input/Output


Battery TypeLithium or Lead-Acid Battery
Battery Voltage Range40V~60V
Max. Charge/Discharge Current280A/280A330A/330A350A/350A
Battery Input Quantity2
AC Output (Off-Grid)


Rated Off-Grid Output Voltage/Frequency3L/N/PE 380/400Va.c.
Max. Output Power16.5kW19.8kW22kW
Max. Apparent Output Power16.5kVA19.8kVA22kVA
Max. Output Current24A28.7A31.9A
AC Output (Grid-Tied)


Rated Grid-Tied Voltage/Frequency3L/N/PE 380/400V 50/60Hz
Rated Output Power15kW18kW20kW
Max. Output Power16.5kW19.8kW22kW
Max. Apparent Output Power16.5kVA19.8kVA22kVA
Max. Output Current24A28.7A31.9A
Power Factor>0.99 (0.8 leading to 0.8 lagging)
AC Input


Rated Voltage3L/N/PE 380V/400V 50Hz/60Hz
Max. Input Current25A30A33.4A
Interfaces


DisplayLCD+LED
Communication InterfaceRS232, RS485, CAN
Monitoring MethodGPRS/WIFI/Bluetooth/4G/LAN (Optional)
System Data


Protection RatingIP66
Operating Ambient Temperature-40~60℃ (>45℃ derating)
Cooling MethodSmart Air Cooling
Max. Operating Altitude≤3000m
Noise≤60dB
Dimensions (W*H*D)435*750*268mm
