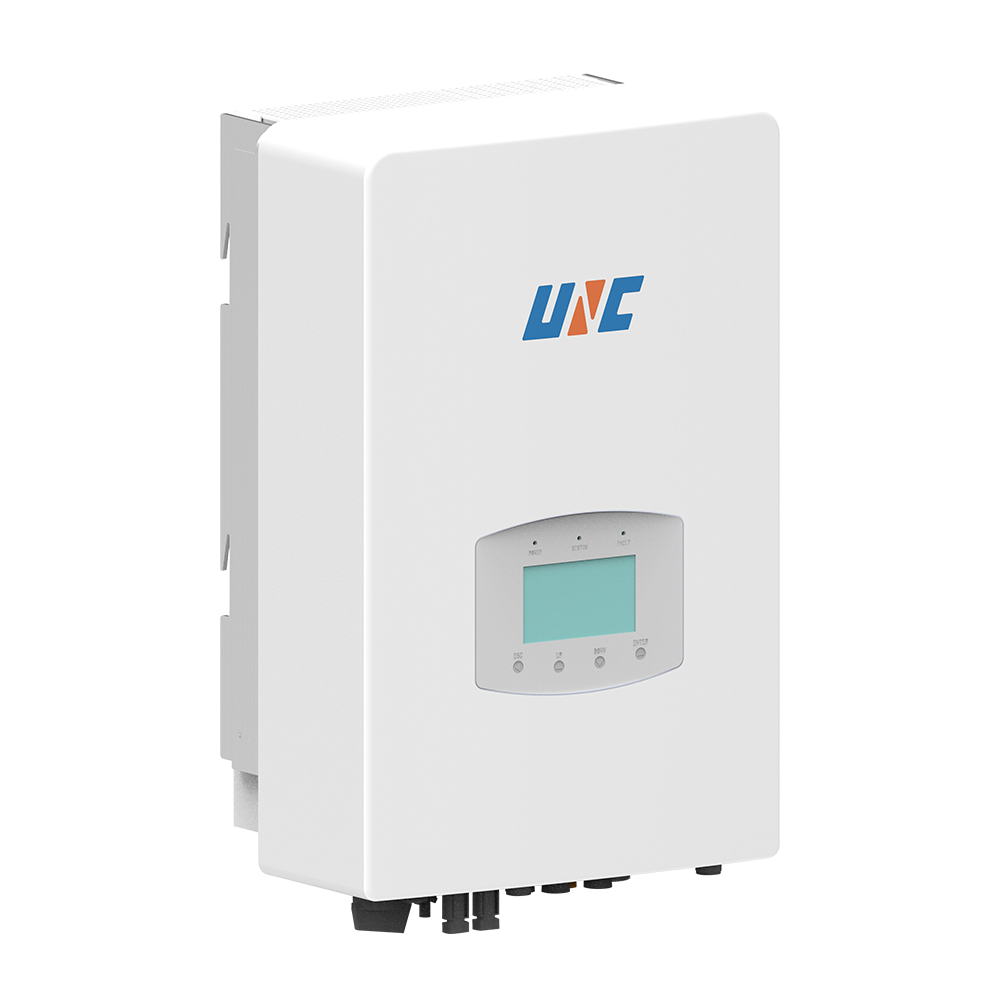

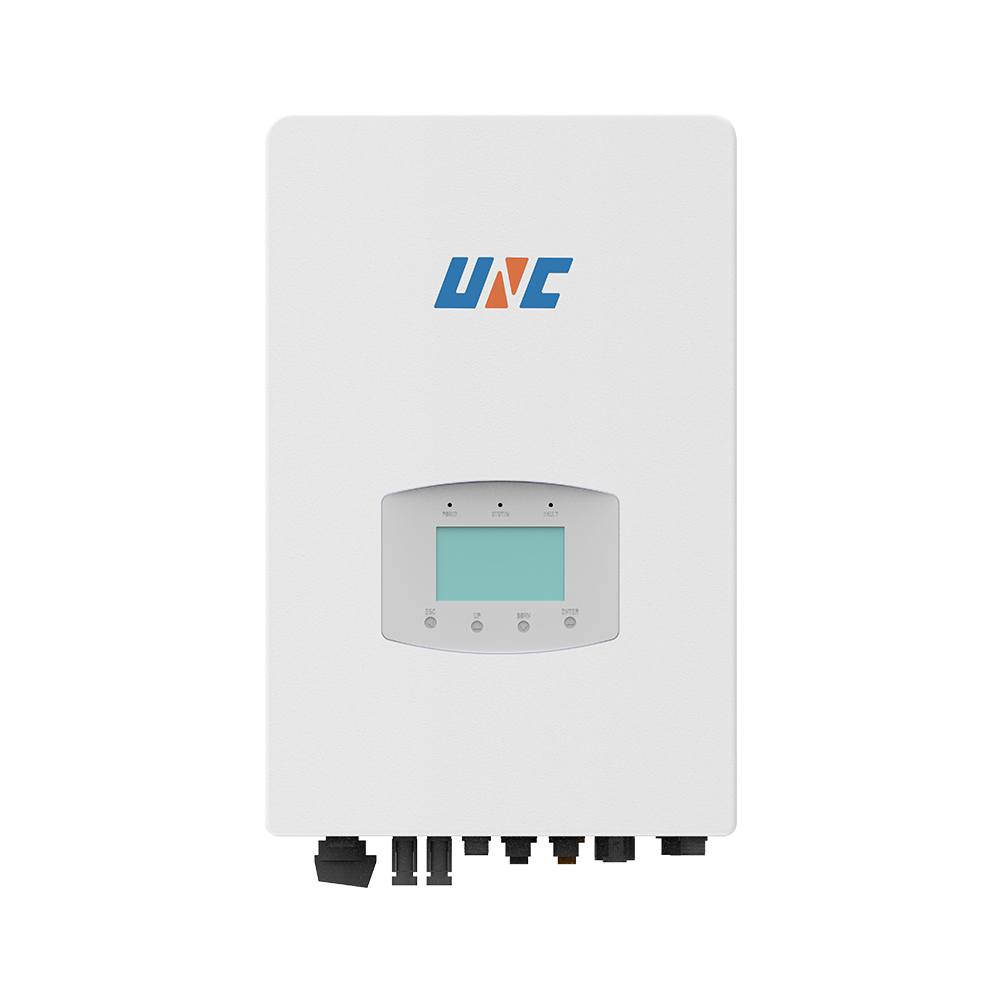

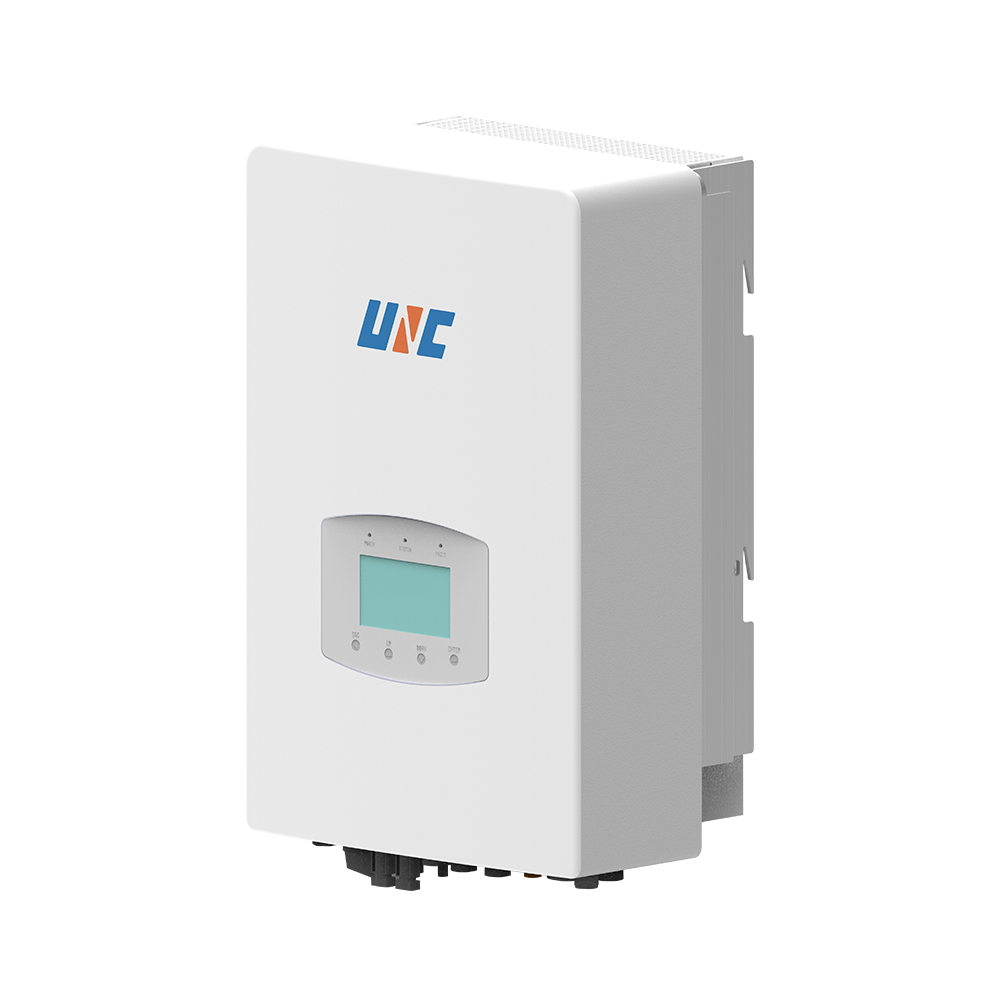

Single-phase LV Hybrid Inverter
6-8kW

Position:

FrontPage>Product Center>Household Energy Storage>Hybrid Inverter

Product Advantages

IP66

IP66 High Ingress Protection Rating

60V

60V Low-Voltage Start

提升 保护.png
Overload Capacity

200% Rated Overload Capacity

10ms

10ms Off-Grid Transfer

Parallel Capability

Supports up to 12 Units in Parallel

Battery-Free Start-up

Battery-Free Start-up Available

Technical Specifications

Product Parameter Table · ESS2 Series Inverter


Product Model

ESS2-6K1P-02-LV-FESS2-8K1P-02-LV-E
PV Input
Max. Allowable Input Power13.2kW14kW
Max. Input Voltage500V
Rated Input Voltage350V
Start-Up Voltage60V
MPPT Voltage Range60-425V
Max. Input Current20A/20A
Max. Short-Circuit Current27A/27A
MPPT Quantity / Max. PV Strings2/2
Battery Input/Output
Battery Voltage Range40-60V
Max. Charge/Discharge Current140A/140A
Max. Charge/Discharge Power7kW/7kW
Battery BMS CommunicationRS485/CAN
Inverter Output
Rated Output Power6.6kW8kW
Max. Output Apparent Power6.6kVA8kVA
Rated Output Current30A34.8A
EPS Switching Time<10ms
Rated Output Voltage/FrequencyL/N/PE 220V/230V/240V 50Hz/60Hz
Output Power Factor0.8 leading ... 0.8 lagging
Total Current Harmonic Distortion<2%
Grid Input
Max. Input Power10kW11kW
Max. Input Current50A
Input Voltage Range90-280V
EPS Port
Max. Output Power (Hybrid)10kW11kW
Max. Output Power (No Grid)6.6kW8kW
Max. Output Current (Hybrid)50A
Max. Output Current (No Grid)30A34.8A
Multifunctional Port
Operating ModeSecond Load / Generator Input
Max. Input/Output Power8kW11kW
Max. Input/Output Current40A50A
Rated Voltage/FrequencyL/N/PE 220V/230V/240V 50Hz/60Hz
System Parameters
Display3.5-inch LCD Touch Button
Max. Conversion Efficiency97.50%
Protection RatingIP66
Noise<55dB<60dB
Operating Temperature-40 ~ 60℃ (>45℃ derating)
Humidity0-100% (Condensing)
Cooling MethodForced-air
Inverter Dimensions (L*W*H)420*330*170mm
Inverter Net Weight14kg
Features
PV Insulation DetectionSupported
Anti-Islanding ProtectionSupported
Anti-Reverse FlowCT / Meter
Max. Parallel Quantity12
Three-Phase Parallel ConnectionSupported
